AOI Machine for Bearing Ring Appearance Defects

AOI Machine for Bearing Ring Appearance Defects is a professional inspection machine for vehicle parts, grinding parts and it can detect the appearance defects including rust,scratch, black spots, notch, chamfer missing,missing material and so on.

Functional Characteristic
360-degree Detection without Dead Angle

It achieves?360-degree comprehensive detection of outer diameter, chamfer and both ends of bearing rings.

High Inspection Efficiency

It has high inspection efficiency, which can realize both in-line and o?ine detection.

Wide Range of Application

It has wide range of application, being able to detect roller rings, needle roller rings and ball roller rings.

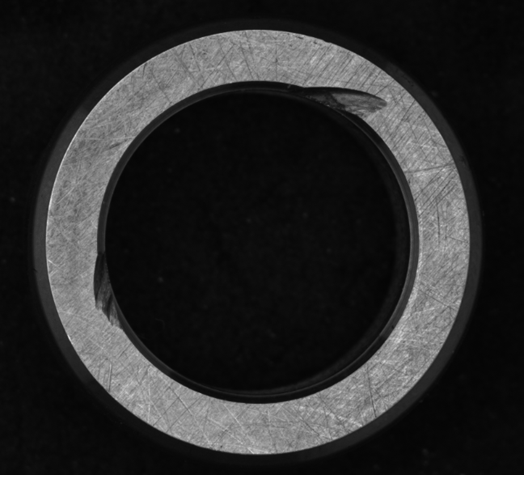

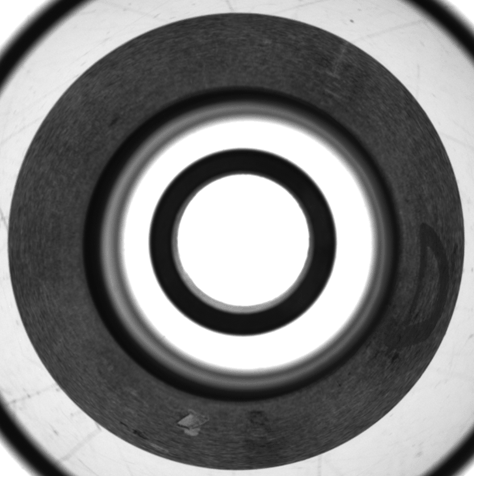

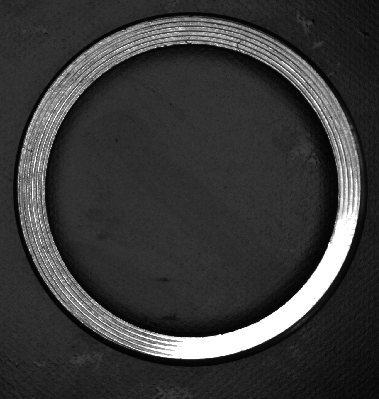

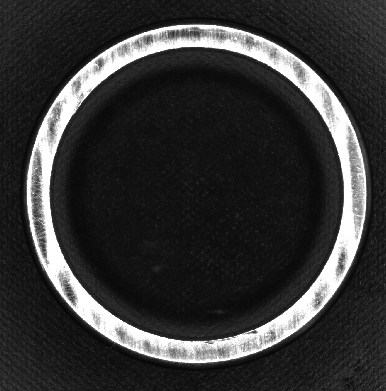

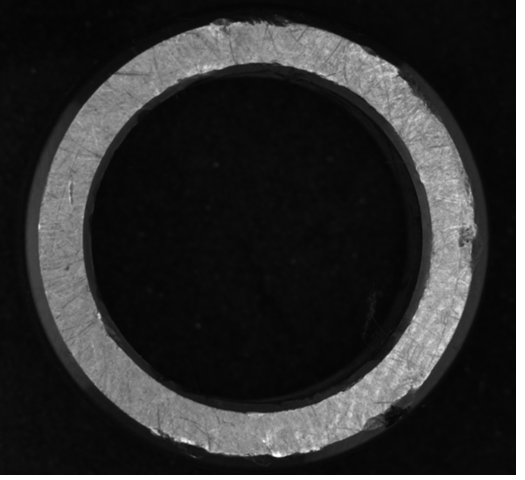

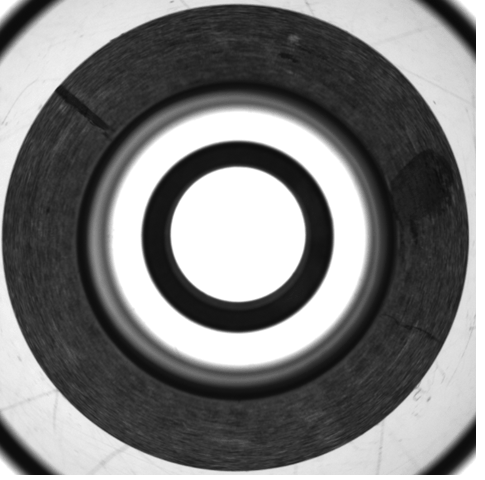

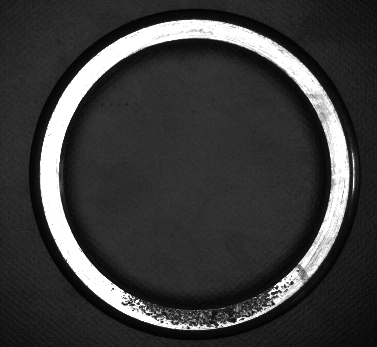

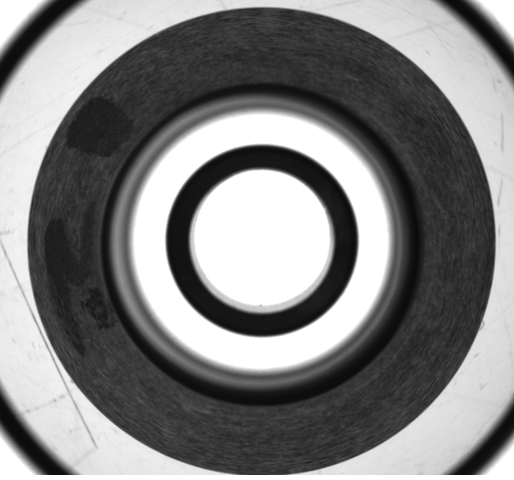

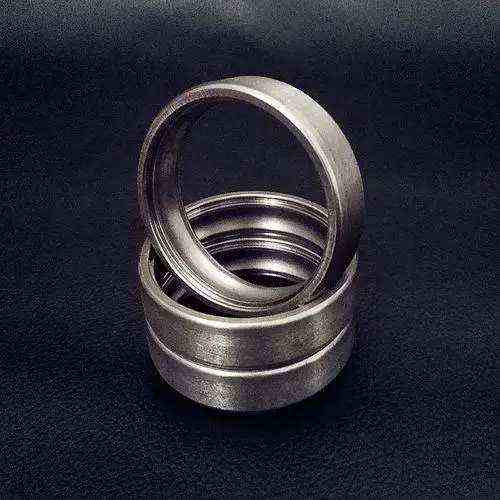

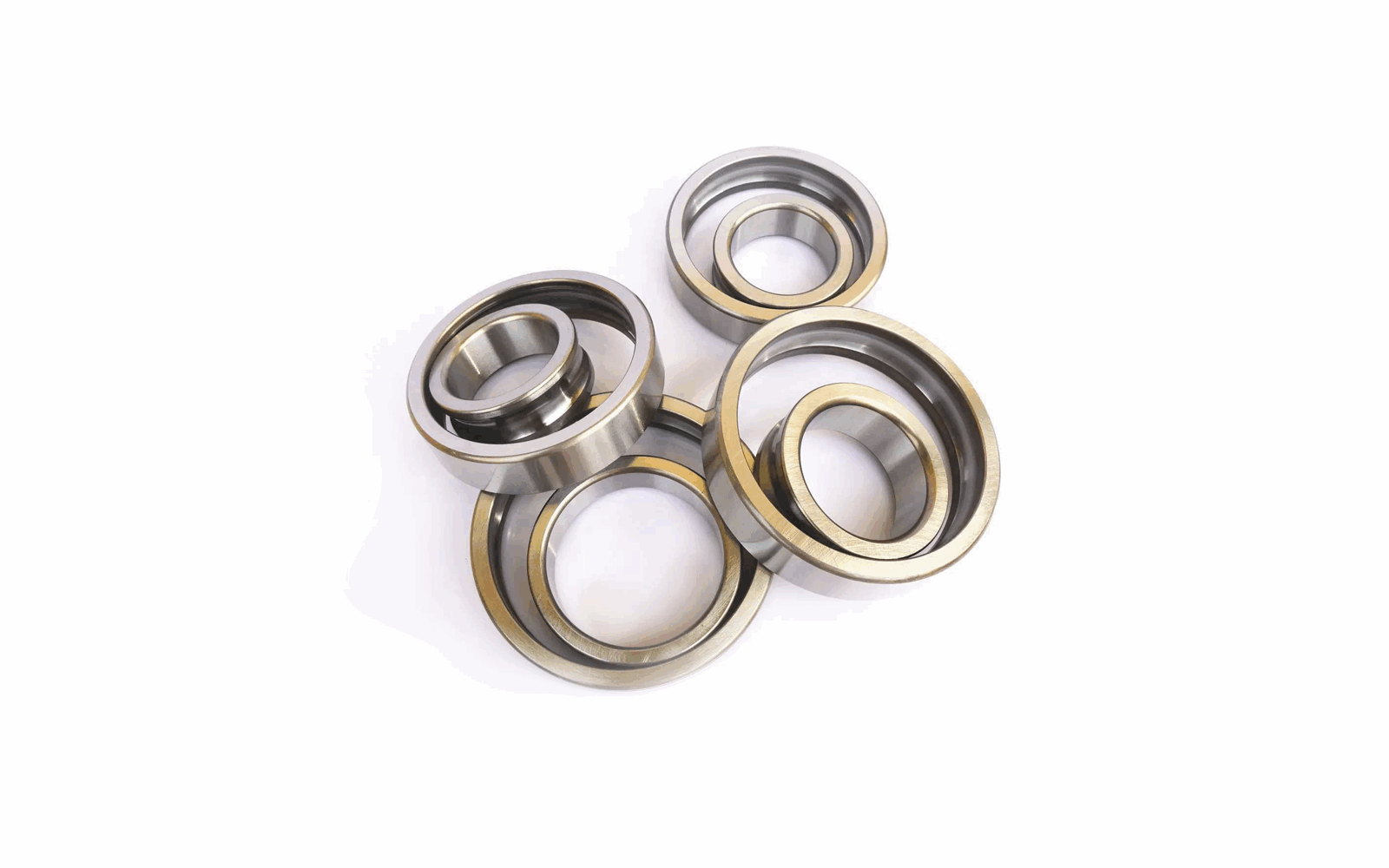

Workpiece
Bearing ring
Bearing ring
01
02
Technical Specifications

Inspection Item

Type of Appearance defect

Character, rust, error processing, cut, abrasion, dent, mixing, material defects and so on.

Inspection Range

? 10~100mm,H5~50mm(Need to be graded detection)

inspection requirements

Surface clean, no oil

Speed

900~7,200pcs/h

Mean Time to Failure

10,000H

Optical Resolution

0.05mm

Voltage

220V,50HZ

Power

1000W

Air Power

0.5~0.8MPa

Size/Weight

1.0 m*1.0 m*1.75 m / 300kg

Working environment

5℃-30℃;Humidity<70°

Features

1 . Real-time display detection status and the number of NG alarm;

2. support for remote debugging.
